Product Details:
|
| Product: | Dome Skylight | Material: | Q235 |
|---|---|---|---|
| Color: | Customized | Packaged: | Wood Package |
| Drawing Design: | CAD | Span Life: | 30-50 Years |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Installation: | On-site Installation |
| Highlight: | Q355B Roof Dome Skylight,Roof Dome Skylight 800m,Sky Dome Skylights Customized |
||

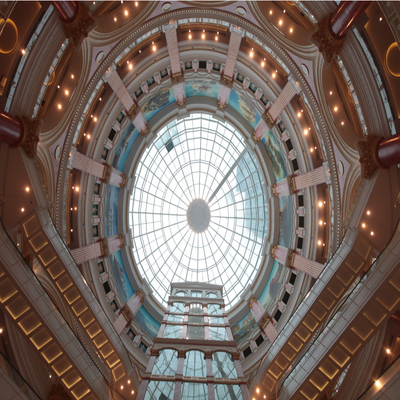

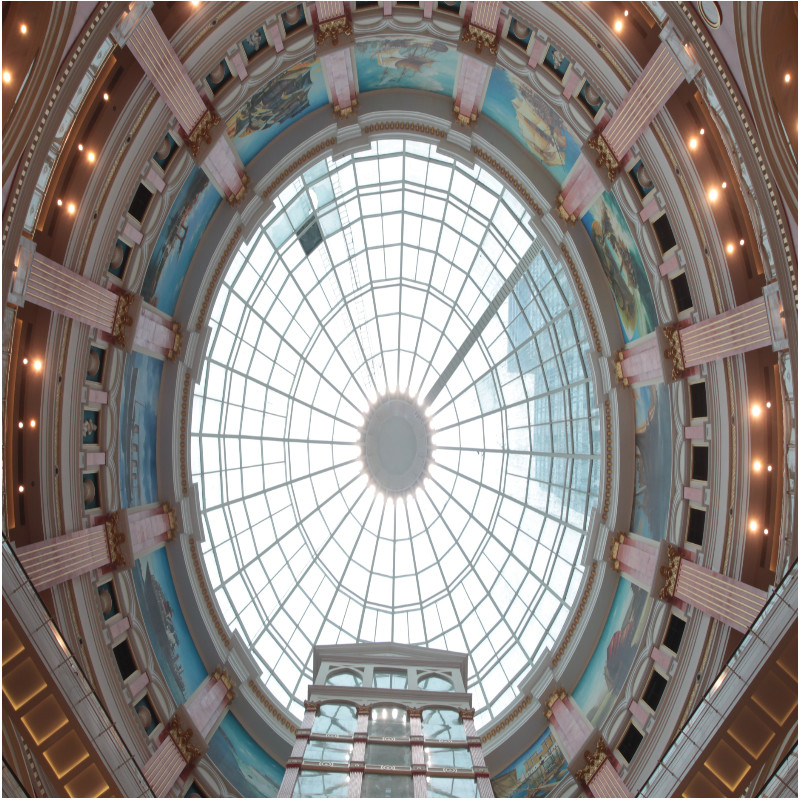

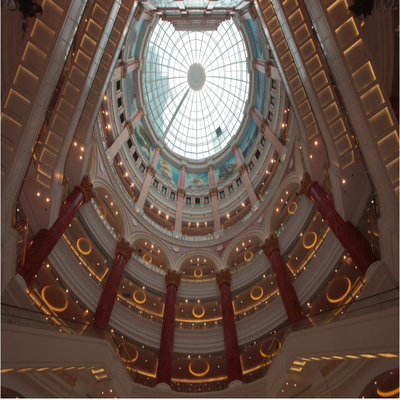

Shanghai Star Global Portdome Skylight With Area Of 800 Square Meters
Description
The vast majority of ground-floor curtain walls are installed as long pieces (referred to as sticks) between floors vertically and between vertical members horizontally. Framing members may be fabricated in a shop, but installation and glazing is typically performed at the jobsite.
Feature
1. Yuexing Global Port adopts steel structure frame.
2. Glass roof design.
3. Construction area of 800 square meters.
4. Construction period of 50 days.
Table sheet
| Steel framework | 1.Steel beam | |||
| (Q235B,Q355B) | 2.Steel column | |||
| 3.Bracing | ||||
| 4.H cross-section steel,box cross-section steel,round pipe,round steel, | ||||
| 5.L steel,etc. | ||||
| Wall and roof | 1.Single steel sheet 0.36mm-0.6mm thick | |||
| 2.Sandwich panel with EPS,PU,glass wool and rock wool(50-120mm) | ||||
| Door | 1.Roller door | |||
| 2.Sliding door and sidewall door | ||||
| 3.Steel sheet, sandwich panel or aluminum-alloy. | ||||
| 4.According to your requirements | ||||
| Window | 1.Sliding window | |||
| 2.Plastic-steel frame or aluminum frame | ||||
| 3.According to your requirements | ||||
| Gutter | 1.Aluminum-zinc steel sheet | |||
| 2.Stainless sheet | ||||
| Downpipe | 1.PVC | |||
| 2.Stainless pipe | ||||
| Skylight panel | FRP,1.5mm,2.0mm,2.5mm,according to your requirements | |||
| Ventilation | 1.Turbine vent | |||
| 2.Ridge vent | ||||
| 3.According to your requirements | ||||
| Other materialss | Self-screwing tapping,bolt,nut etc. |
|||
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
