Product Details:
|
| Product Name: | Space Frame Roof | Material: | Light Steel Q235 |
|---|---|---|---|
| Color: | Customized | Packaged: | Wood Package |
| Life: | 50-70 Years | Large Span: | 100-300 Meters |
| Roof: | Space Frame | Seismic Grade: | 10 |
| Highlight: | Large Span Hot Dip Galvanized Steel Structure,100m Hot Dip Galvanized Steel Structure,Steel Structure Space Frame Q235 |
||

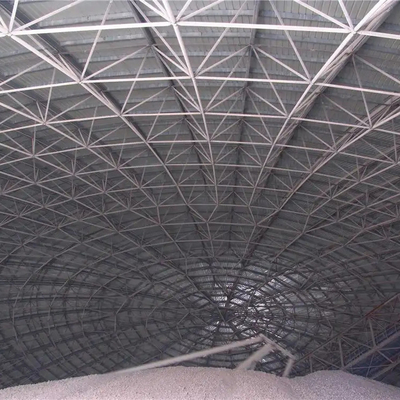

Hot Dip Galvanized Steel Structure Space Frame large span Arch coal shed
A row of middle support steel structures used to support the steel grid are installed in the steel grid. The middle support steel structures in the row include several vertically arranged lattice columns. The bottom of each lattice column is supported and fixed on the concrete bearing structure. The top of several lattice columns are jointly installed and fixed with a horizontally arranged truss beam. The truss beam and the steel grid are connected by installing column caps The structure of the grid structure in the coal storage shed of the utility model is scientific and reasonable. In particular, the steel structure of the middle support is designed and installed in the steel grid, and the stress system is established between the steel structure of the middle support and the steel grid, which is conducive to the control of the forming of the grid shell and the stress conversion The establishment of the middle support steel structure reduces the corresponding measures established by the conventional construction method to ensure the stability of the structural system during the construction process, improves the construction speed and installation efficiency, and accelerates the construction progress.
| Brand name | space frame coal storage shed yard in steel structure construction | |
| Model | 1.Single slope, Double slope, Multi-slope. | |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | ||
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. | |
| 2.All bolts connecting. | ||
| 3.Straight cross-section or Variable cross-section. | ||
| Fabrication | Advanced Automatic Welding Machines | |
| Quality | control GB/T19001-2000----ISO9001:2000 | |
| Surface | Hot-dip galvanized or painted | |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. | |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | ||
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | ||
| Carrying capacity | 1.Resisting winds and seismic impacts. | |
| 2.Bearing heavy snows. | ||
| Drawing | 1.Making the design and quotation according to your requirements very soon. | |
| 2.Making the quotation according to your drawings. | ||
| 3.Giving you the satisfying opinion to your project. | ||
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
