Product Details:
|
| Name: | Steel Roof Truss | Product: | Steel Structural Building |
|---|---|---|---|
| Material: | Q235 Q345 | Packaged: | Steel Package |
| Installation: | On-stie Installation | Color: | Customized |
| Surface: | Galvanized | Processing: | Bending, Welding, Decoiling, Cutting, Punching |
| Highlight: | Q345 Steel Roof Trusses,Prefab Design Steel Roof Trusses,Q235 Steel Roof Trusses |
||
Light Steel Prefab Design Trusses For Building Construction
Feature

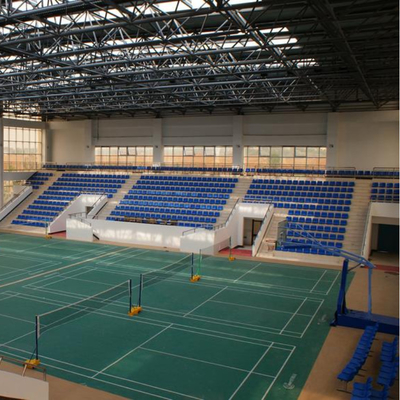

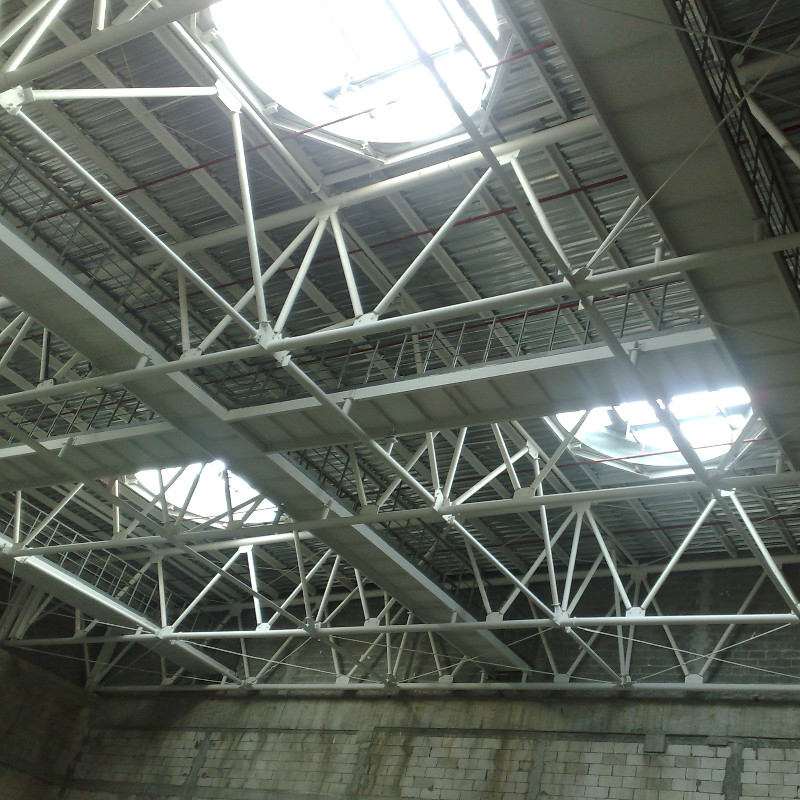

The truss in the truss structure refers to the truss beam, which is a kind of beam structure with lattice structure. Truss structure is often used in long-span factory buildings, exhibition halls, stadiums, Bridges and other public buildings. Trusses are also commonly referred to as roof frames because of the roof structure most often used in construction.
Main structural features
The stress of each bar is mainly unidirectional tension and compression. Through reasonable arrangement of upper and lower chord bars and belly bars, the bending moment and shear force distribution inside the structure can be adapted. Because of the horizontal pull and pressure internal forces to achieve their own balance, the whole structure does not produce horizontal thrust support. Flexible structure layout, a very wide range of applications
Table Sheet
| Brand name | space frame coal storage shed yard in steel structure construction | |
| Model | 1.Single slope, Double slope, Multi-slope. | |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | ||
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. | |
| 2.All bolts connecting. | ||
| 3.Straight cross-section or Variable cross-section. | ||
| Fabrication | Advanced Automatic Welding Machines | |
| Quality | control GB/T19001-2000----ISO9001:2000 | |
| Surface | Hot-dip galvanized or painted | |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. | |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | ||
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | ||
| Carrying capacity | 1.Resisting winds and seismic impacts. | |
| 2.Bearing heavy snows. | ||
| Drawing | 1.Making the design and quotation according to your requirements very soon. | |
| 2.Making the quotation according to your drawings. | ||
| 3.Giving you the satisfying opinion to your project. | ||
Herbert (Suzhou) International Trade Co., Ltd., located in the West of the Lake CBD of Suzhou Industrial Park,is a new international trade Internet Sales Service Company, which is based on the steel structure products designed by Jiangsu Andy Steel Structure Co. Ltd. The company is specialized in international trade and sales services of space frame, steel structure, curtain wall, membrane structure, etc., The products areused in various infrastructure and housing construction industries. The company has a comprehensive R&D, design, sales, and technical engineering service team, and has obtained construction qualification certificates and foreign trade registration record. At present, the company mainly promotes products and service information to overseas customers through Alibaba International Trade Station and Google Promotion Station. Our vision is that as long as there is a building, it is our business.
feature
Standard: GB,
Tolerance:±1% ,
Processing Service:Bending, Welding, Decoiling, Cutting, Punching,
Space frame:large span strong durability ,
Design Style:Modern,
Usage:Steel building
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
