Product Details:
|
| Product: | Steel Space Frame Roof Structure | Material: | Q235 |
|---|---|---|---|
| Color: | Customized | Packaged: | Wood Package |
| Life: | 50-70 Years | Large Span: | 100-300 Meters |
| Application: | Structural Roofing | Processing Service: | Bending,Welding,decoiling,cutting,punching |
| Purlin: | C.Z Shape Steel Channel | Tolerance: | ±1% |
| Highlight: | Light Glass Frame 100m,Light Glass Frame 300m,Steel Truss Structure Bending |
||

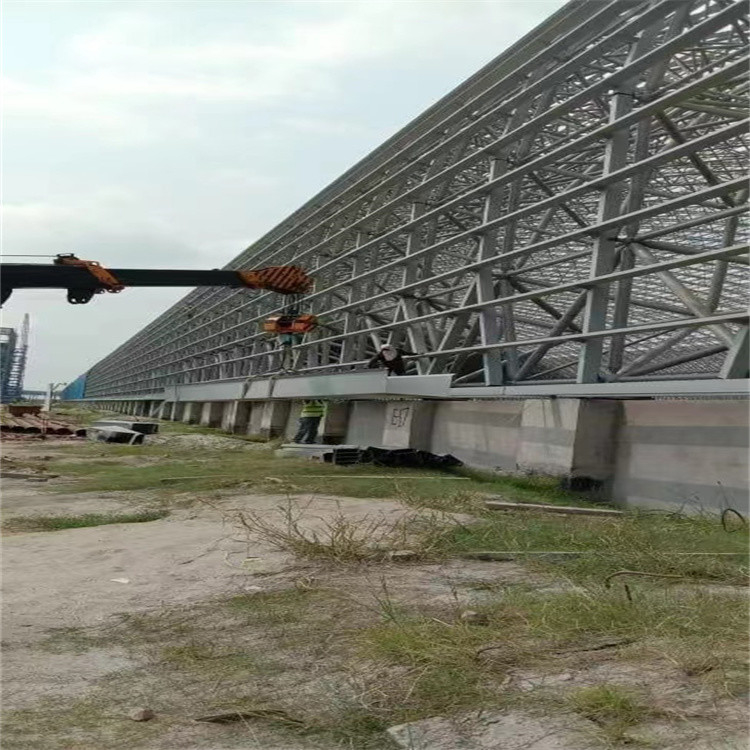

Mid-grey Paint Painting Light Dome Glass Panel Steel Structure Space Frame
Description
The cross-section of the members of the grid structure shall be determined according to the strength and stability calculations. In order to reduce the calculated length of the pressure rod and increase its stability, measures such as adding a re-dividing rod and a supporting rod can be adopted.
Feature
The joints of the plate mesh frame and the double shell type mesh frame made of steel mainly include the cross plate joint, the welded hollow ball joint and the bolt ball joint. The cross plate joint is suitable for the grid structure of the section steel member, and the connection between the member and the node plate is connected by welding or high-strength bolts.

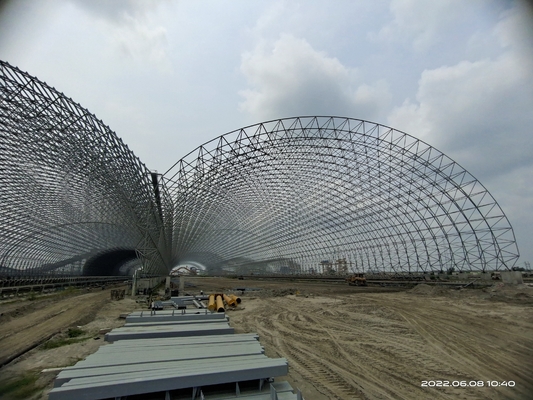

| Brand name | space frame coal storage shed yard in steel structure construction | |
| Model | 1.Single slope, Double slope, Multi-slope. | |
| 2.Single span, Double-span, Multi-span, Single floor, Double floors. | ||
| Column and beam | 1.Material Q345(S355JR)or Q235(S235JR) steel. | |
| 2.All bolts connecting. | ||
| 3.Straight cross-section or Variable cross-section. | ||
| Fabrication | Advanced Automatic Welding Machines | |
| Quality | control GB/T19001-2000----ISO9001:2000 | |
| Surface | Hot-dip galvanized or painted | |
| Roof and wall panel | 1.EPS ,PU ,Rockwool sandwich panel. | |
| 2.Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide). | ||
| 3.Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, 950mm or 960mm width. | ||
| Carrying capacity | 1.Resisting winds and seismic impacts. | |
| 2.Bearing heavy snows. | ||
| Drawing | 1.Making the design and quotation according to your requirements very soon. | |
| 2.Making the quotation according to your drawings. | ||
| 3.Giving you the satisfying opinion to your project. | ||
Why the space frame structure stand out?
The flexibility and rigidity of space frame structure are immensely growing and in coming days will soon captivate the markets. Its aesthetics and design outlook makes it a worthy option. Apart from the pointers discussed above, in a series of upcoming article we will discuss on several other specifications and advantages of a Space Frame Structure.
| 1. Who we are? We are a global one-stop manufacturer of steel structure solutions. We can offer the service from good design to installation with good quality. 2.Factory or trade company? We are factory, so the factory competitive price will be offered.Our factory covers an area of 360,000 square meters.Our production capacity is 150000 tons per year. 3. Quality assurance and guarantee? Established a procedure to check products at all stages of the manufacturing process-raw materials. in process materials. validated or tested materialsfinishedoods.etc. If there is one quality problems in one project.5%contract amount will be returned 4. Do you offer quiding installation on site overseas? Yes. we can povide the service of installation.We can send our professional technical enaineer and teams to offer the installation on site overseas. |
